Application
Description
A UV printer is a type of digital printer that uses ultraviolet (UV) light to cure or dry the ink as it is printed. Unlike traditional printing methods, UV printers can print directly on a wide range of materials, including plastic, glass, metal, wood, and acrylic. The UV-curable inks are exposed to UV light, which instantly hardens the ink, producing vivid, durable, and scratch-resistant prints. UV printers are commonly used for signage, promotional items, packaging, and custom products.

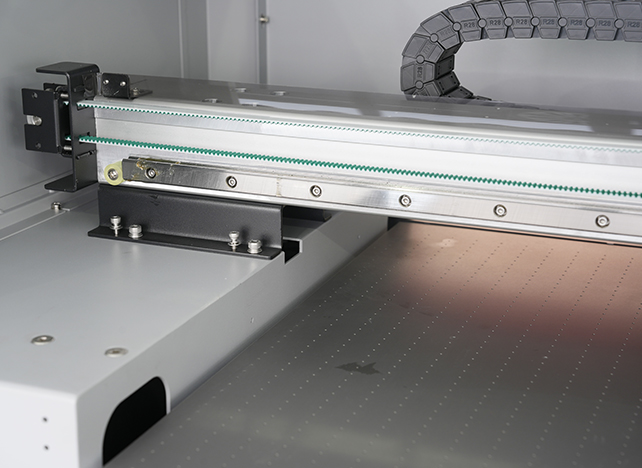

Guide Rail

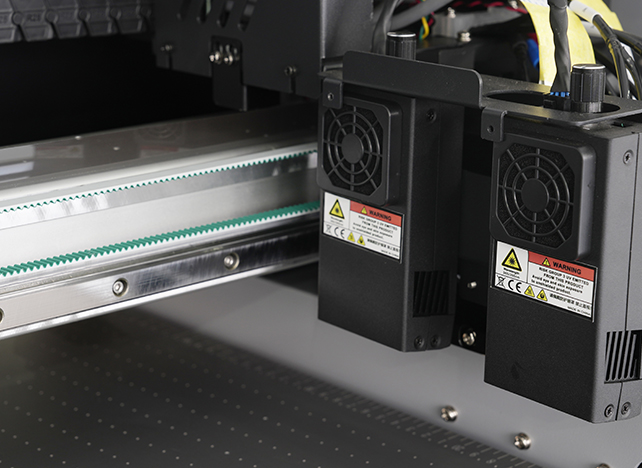

Air Cooling Device

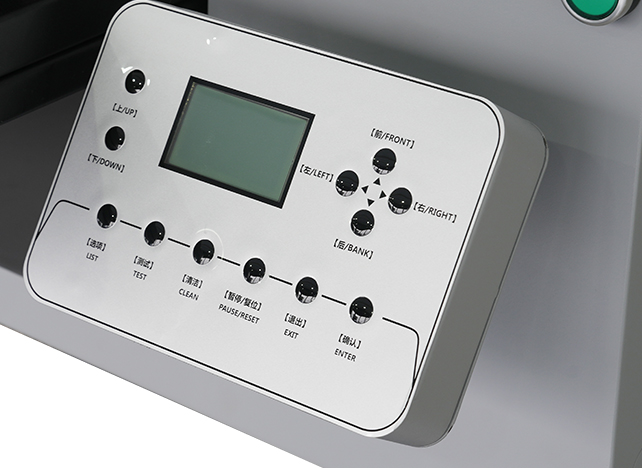

Chinese/ English Control Panel

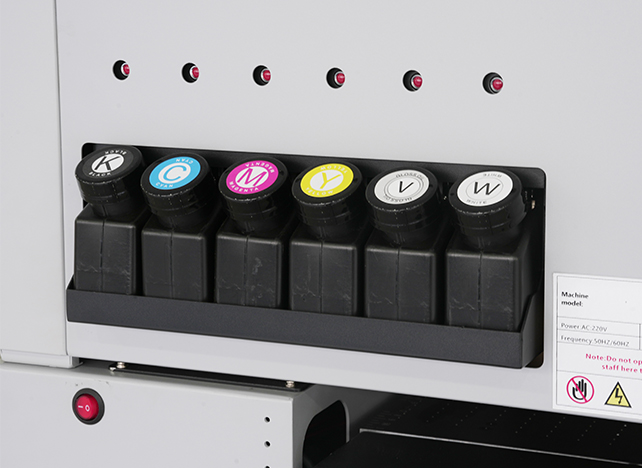

Ink cartridge + Ink shortage alarm

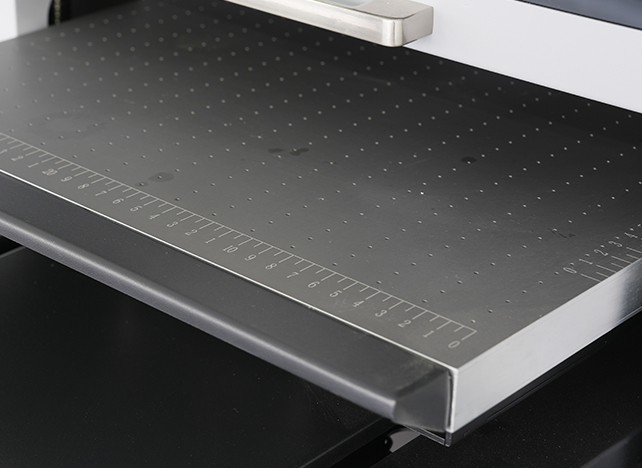

Platform
Specifications
| Model | LC-UV A3 |
| Print head type | 3200-HD/F1080/XP600 |
| Print head number | 1/2pcs |
| Speed | 1.5 ㎡/h |
| UV lamp cooling way | Aircooling |
| Ink type | UV ink |
| Ink color | CMYK+W+V |
| Cartridge capacity | 250ml/color |
| Ink supply method | Positive pressure continuous ink supply |
| Ink curing method | LED uv light cured |
| Printing width | 300×500 mm |
| Media type | Glass, aluminum plastic board, acrylic board, tile, mobile phone case, paper shell, composite wootplate, rubber, Pvc, logo sign,etc. |
| Media thickness | 0-120mm |
| RIP soft ware | 6.1UVMaintop (Standard) |
| Printing platform | Vacuum metal plateform |
| Print interface | USB |
| Operating system | Windows10/Win 11 |
| Image file format | JPG/TIFF/PNG |
| Power (W) | 450W |
| Enironmental requirements | Work temperature: 20-35℃; working humidity: 35-70%RH |
| Machine size (LxWxH) | 795 mmx920 mmx570 mm |
| Net weight(Kg) | 110kg |
Optional Items
Get a Quote Now
Related Video
Factory Strength
A Powerful Printer Manufacturer From China Since 2003
20+ Years Printer Factory
Technical support
Support methods usually include telephone support, online customer service, remote support, etc.
Printing supplies
Locor manufacturers or authorized dealers usually provide corresponding inks, powder films and other consumables.
Spare parts
We usually provide customers with original accessories (such as boards, ink sacs, motors, etc.).
