Application
Description
A UV printer is a type of digital printer that uses ultraviolet (UV) light to cure or dry the ink as it is printed. Unlike traditional printing methods, UV printers can print directly on a wide range of materials, including plastic, glass, metal, wood, and acrylic. The UV-curable inks are exposed to UV light, which instantly hardens the ink, producing vivid, durable, and scratch-resistant prints. UV printers are commonly used for signage, promotional items, packaging, and custom products.

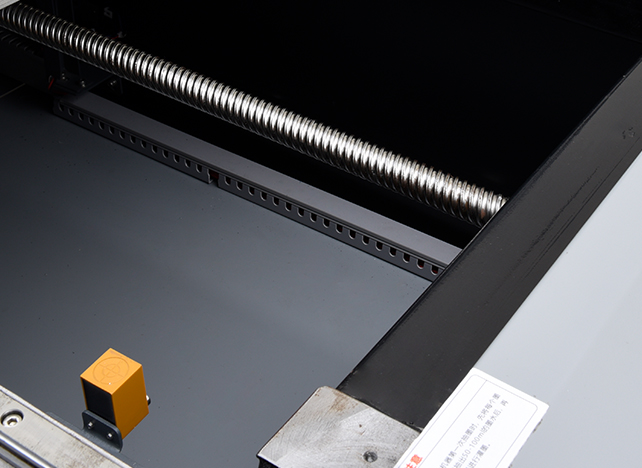

Y-axis guide rail

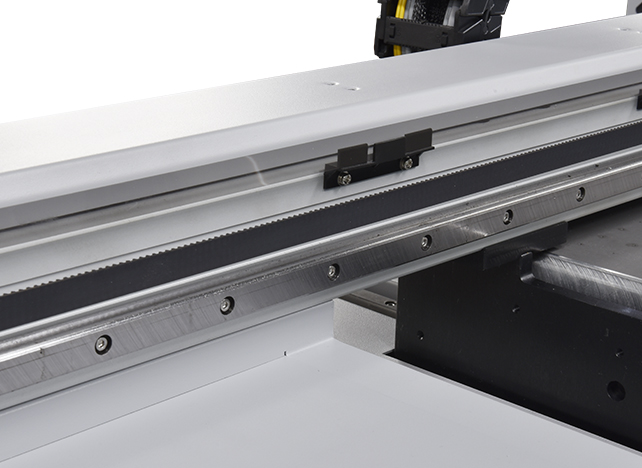

Guide rail

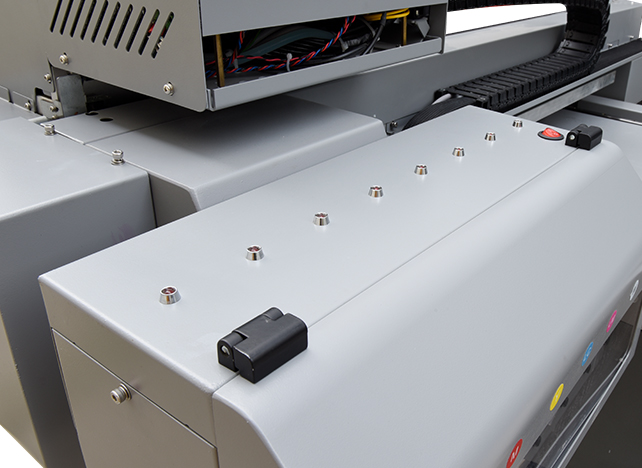

Independent ink shortage alarm system

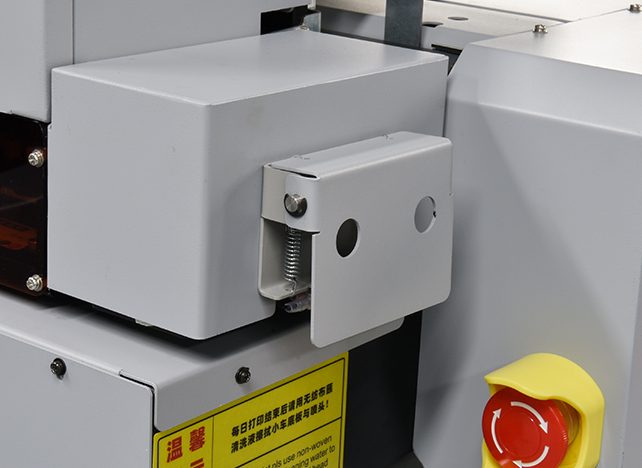

Anti-collision
Specifications
| Model | LC-UV6090 | ||
| Nozzle type | F1080/XP600/i3200/i1600 | ||
| Number of nozzles | 2-4 pcs | ||
| Print mode | Sketch mode 11㎡/h | Production mode 5.5㎡/h | Quality mode 3㎡/h |
| UV lamp configuration | Water-cooled | ||
| Ink type | UV ink | ||
| Ink color | CMYK/CMYK/Lc/Lm+W(white)+V(Varnish)+V(Gold Varnish) | ||
| Cartridge capacity | 1500ml per color | ||
| Ink supply method | Positive pressure continuous ink supply | ||
| Ink curing method | LED Curing | ||
| Print size | 600*900 mm | ||
| Print height | 0-150 mm (Electromagnet automatic height measurement device) | ||
| Fixture configuration | Cylinder/pen fixture (optional) | ||
| Rip software | 6.1UV Maintop/PhotoPrint | ||
| Printing platform | Vacuum Adsorption platform | ||
| Print interface | Network port | ||
| Operation system | Win10 | ||
| Image file format | TIFF/PDF/PNG/JPG | ||
| Machine power | 1200W | ||
| Environmental requirements | Operating temperature:20-35℃;Working humidity: 35-70%Rh | ||
| Power Specifications | AC 220V±10%,50/60 ±1HZ | ||
| Machine size | 1700mm*1650mm*1278mm(L*W*H) | ||
| Machine N.W | 253 kg | ||
| Package size | Vacuum Adsorption Platform | ||
Optional Items
